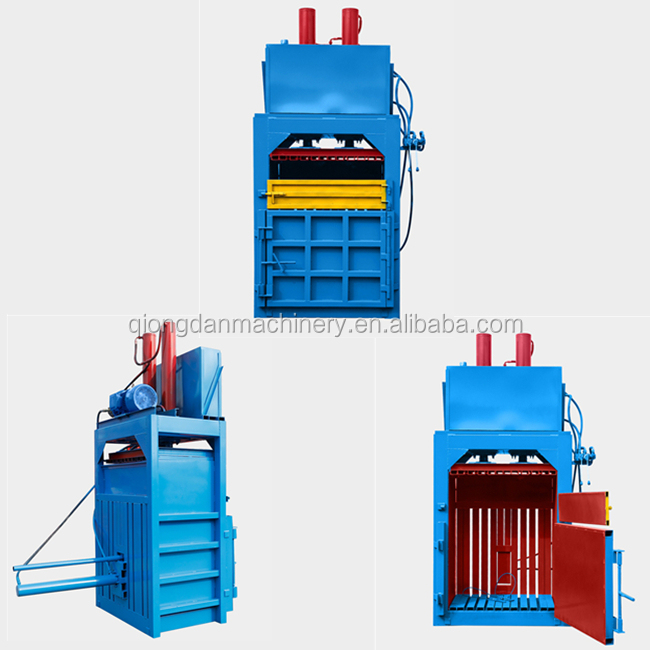

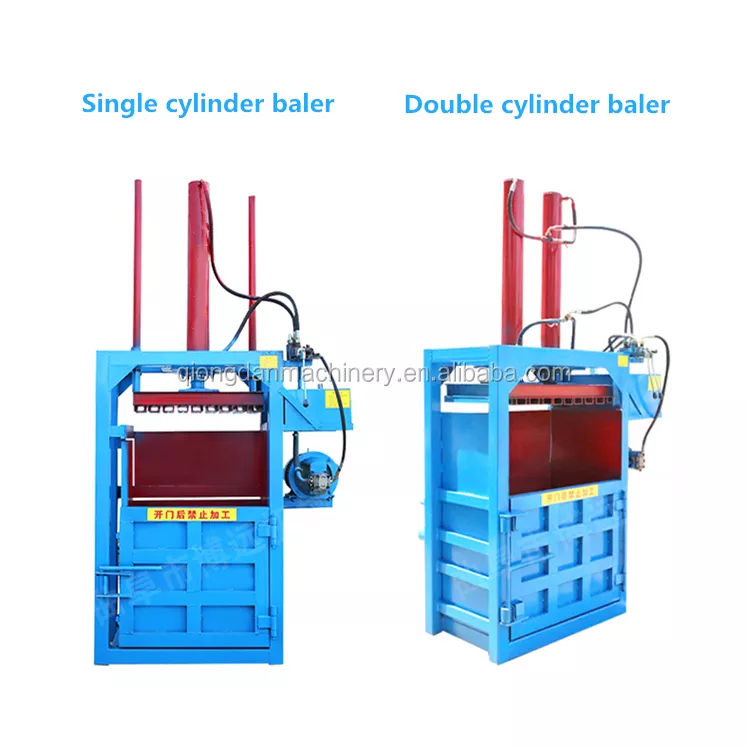

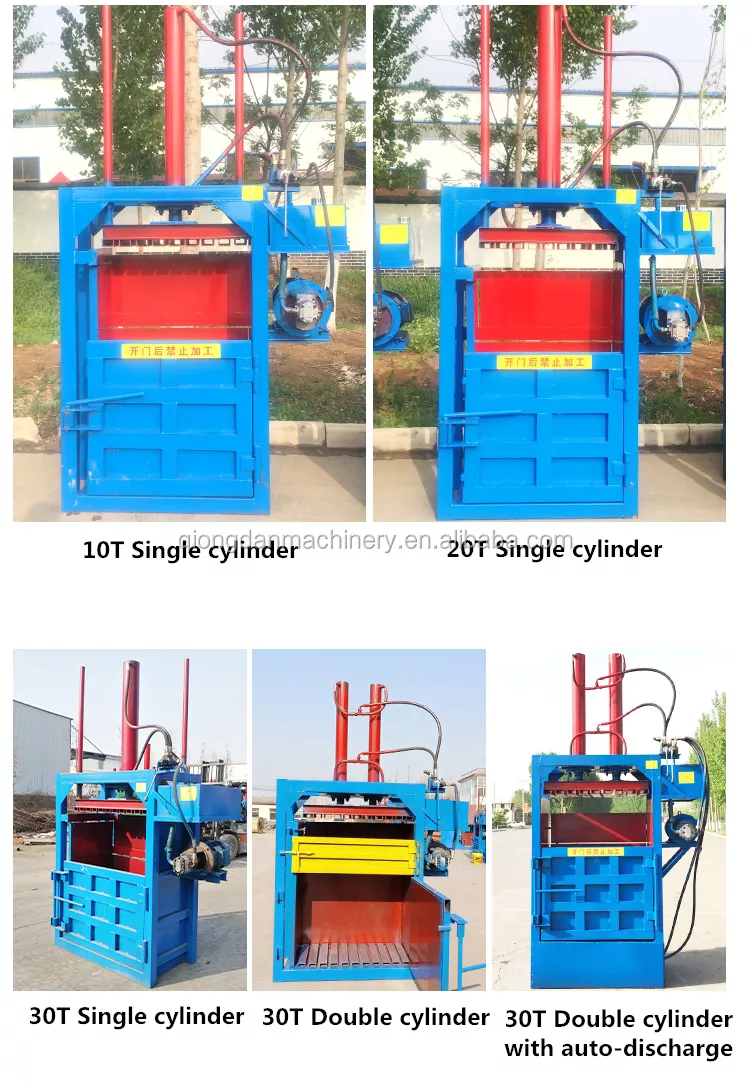

Vertical type waste baler machine

Hydraulic plastic bottle baling press waste vertical baler machine

Description of vertical type waste baler machine

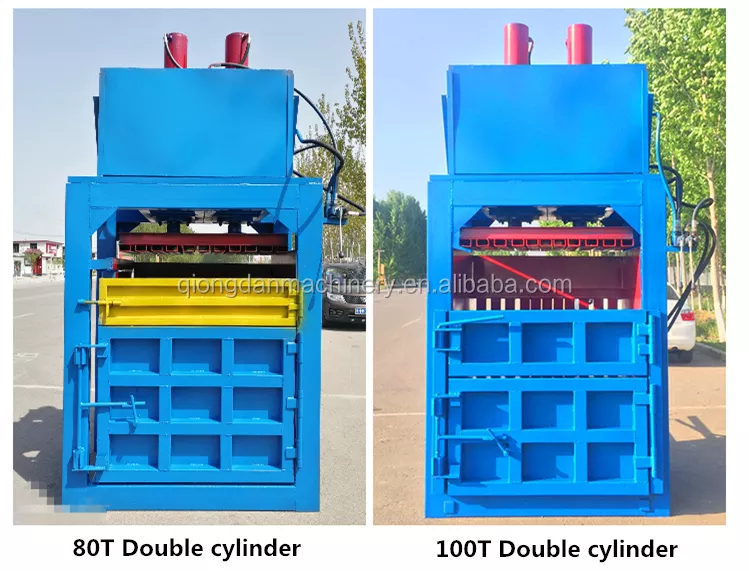

QDVB seriesertical hydraulic baler machine is mainly used for baling straw, cartons, cotton yarn, plastic film, wool, plastic bottles, cans, paint bucket, etc. It is designed as vertical structure, hydraulic transmission, electrical control and manual bundling. Usually the pressure force of this series is from 8 ton to 100 ton, work efficiency is 4-8 bales per hour. The weight of each bale is different according to the material. It is an essential equipment for the cotton-producing areas, the textile industry, garment factories, waste material recycle station and various other light industry enterprises.

It has 2 types of bale discharging: manual bale discharging and auto bale discharging.
And we can customize the machine according to the requirements from customers.

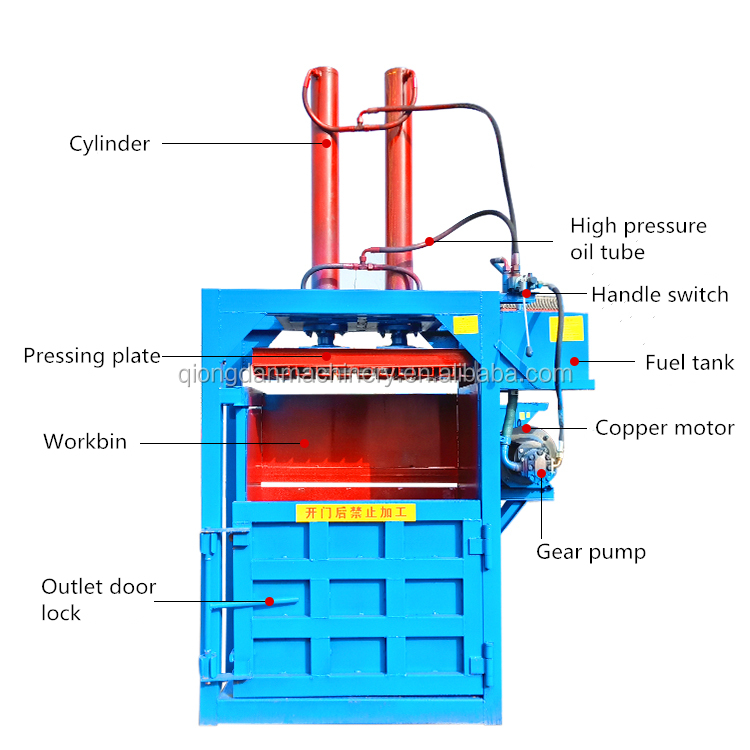

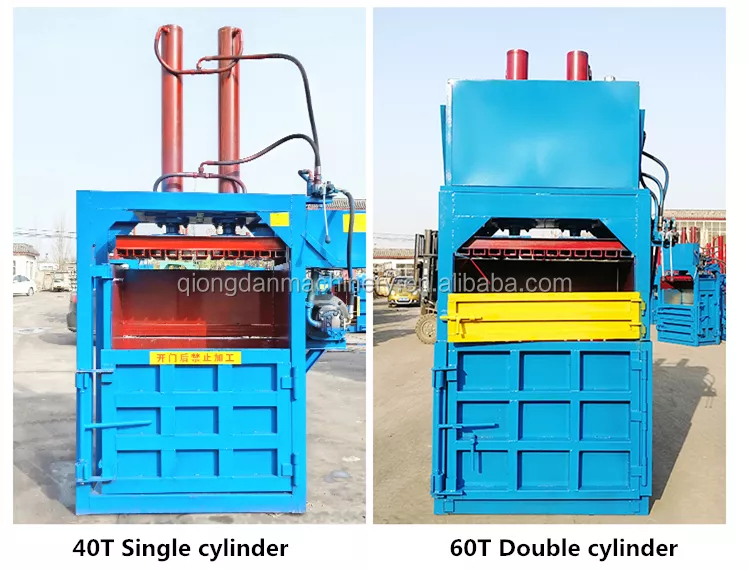

Structure of vertical type waste baler machine

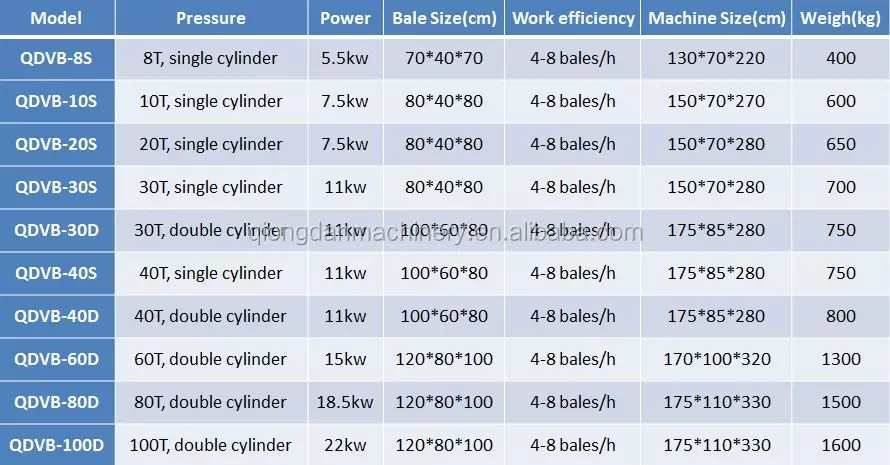

Parameter of vertical type waste baler machine

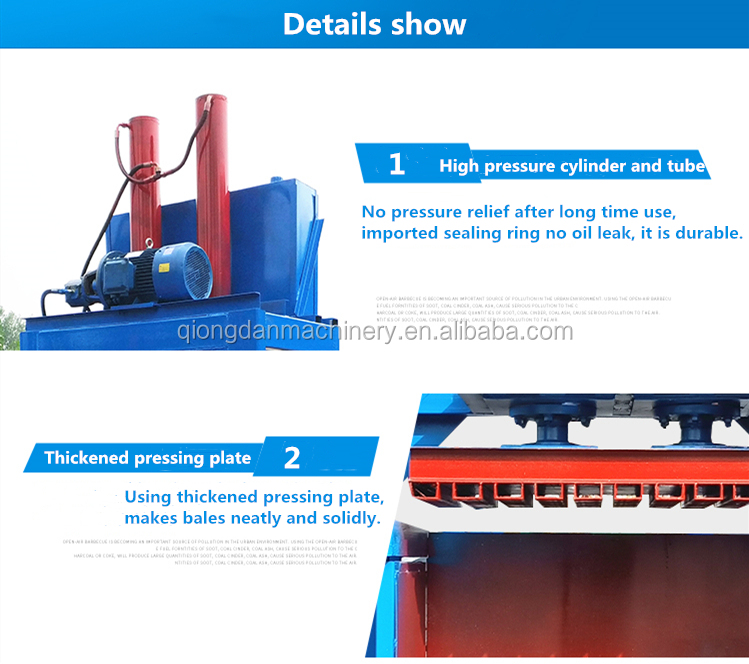

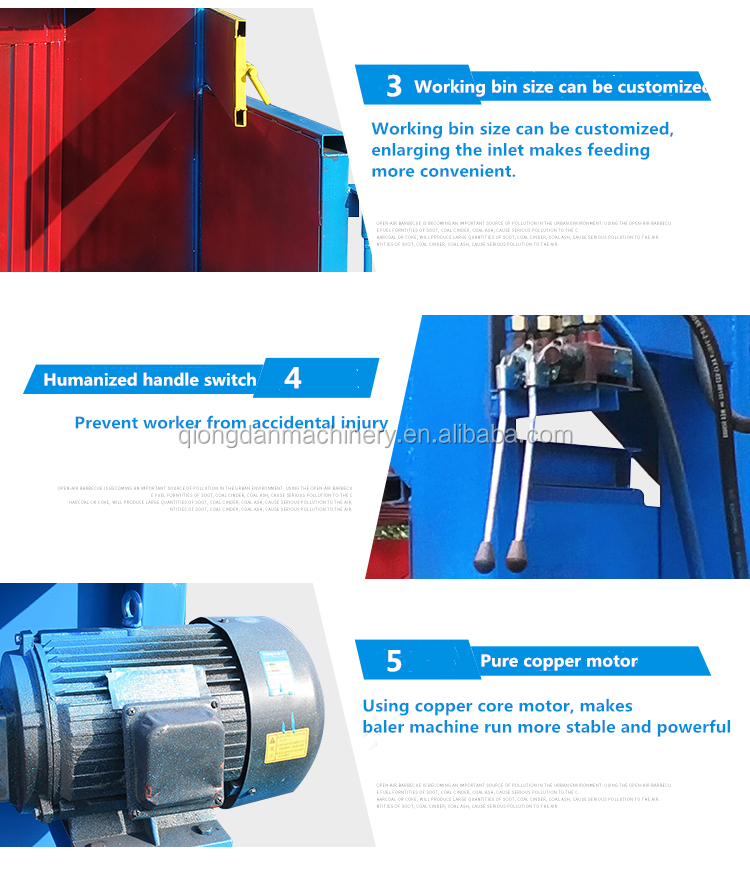

Features of vertical type waste baler machine

1. Hydraulic compaction, manual loading, manual button to operate;
2. Fully maintain the physical properties of materials;
3. Waste compaction ratio can be up to 5: 1;
4. Two binding channels, easy to operate;
5. Anti-rebound barbs keeps compress effect.
6. The pressure plate can be automatic reset.
